I/O Terminal Hardware 11.0 Single SIM Card Interface for ECU Programming and Diagnostics

Description

I/O Terminal Hardware 11.0 Single SIM Card Interface for ECU Programming and Diagnostics

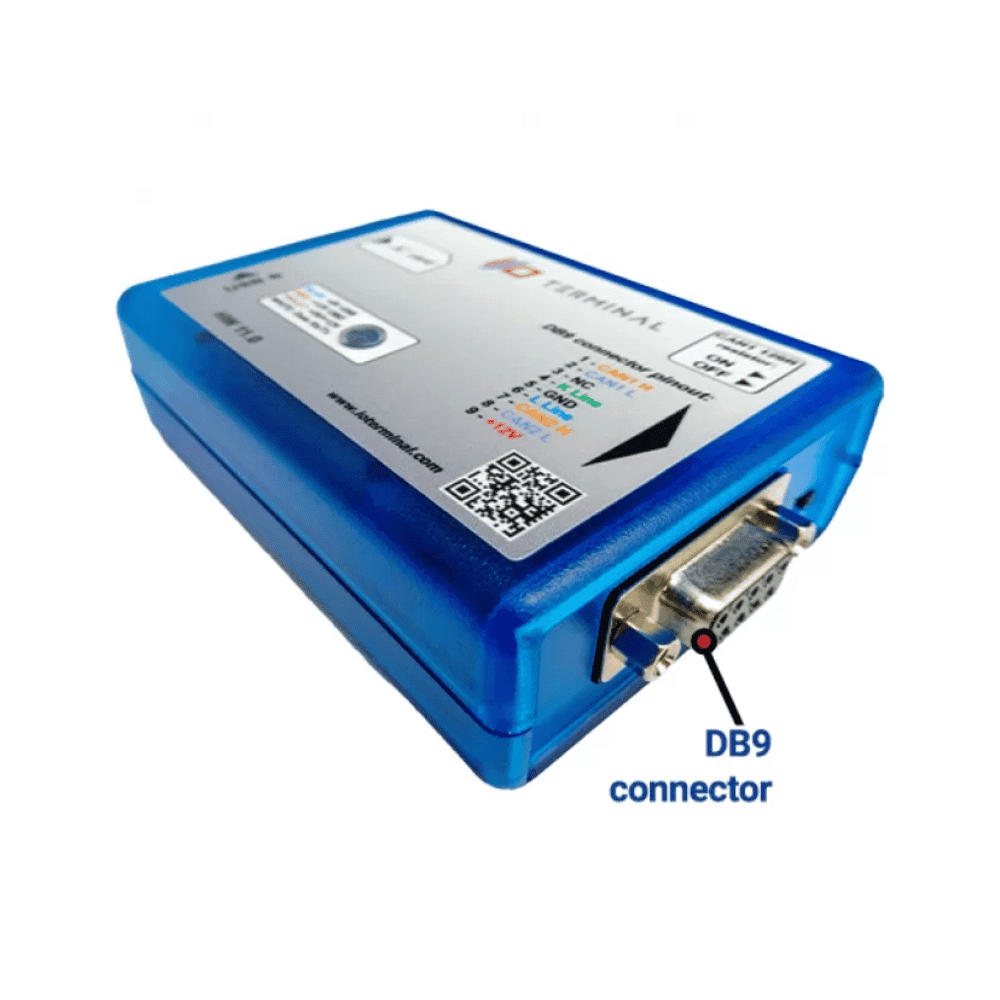

The I/O Terminal is a powerful hardware and software solution designed for advanced communication with a wide range of Electronic Control Units (ECUs), automatic transmissions, and Body Control Modules (BSI) across multiple vehicle brands. Supported manufacturers include VAG, Mitsubishi, Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar, Land Rover, Lancia, Maserati, Hyundai, Kia, Daewoo, and many others. The system communicates via the standard OBD-II diagnostic port.

Key Advantages:

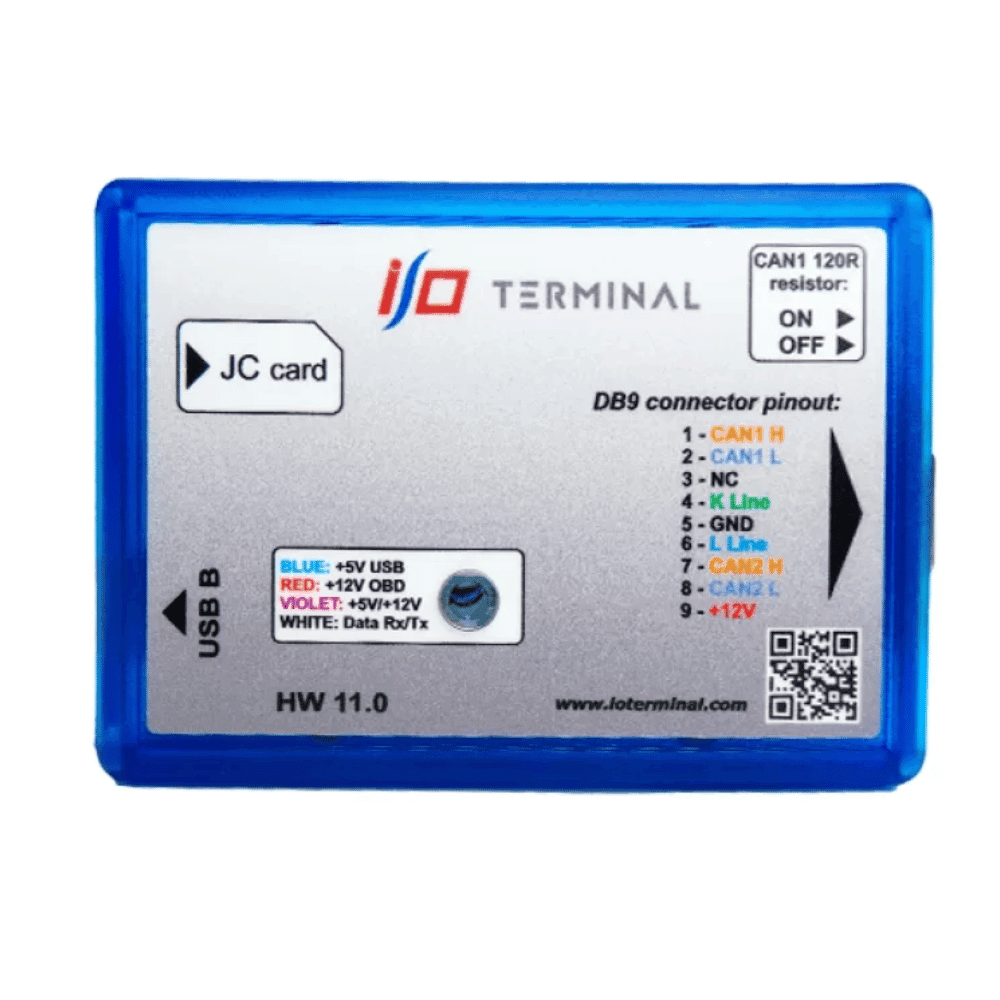

• Wide Compatibility: Supports both K-line and CAN protocols, offering excellent software coverage without the need for expensive J2534 hardware.

• Memory Access: Enables reading and flashing of FLASH and EEPROM memory through the diagnostic connector, facilitating easy programming and diagnostics.

• Checksum Verification: Built-in checksum verification and correction ensure safe and reliable read/write operations.

Licensing System:

• The I/O Terminal software uses a modular licensing structure.

• Each software module is activated independently and can be used with a single shared adapter.

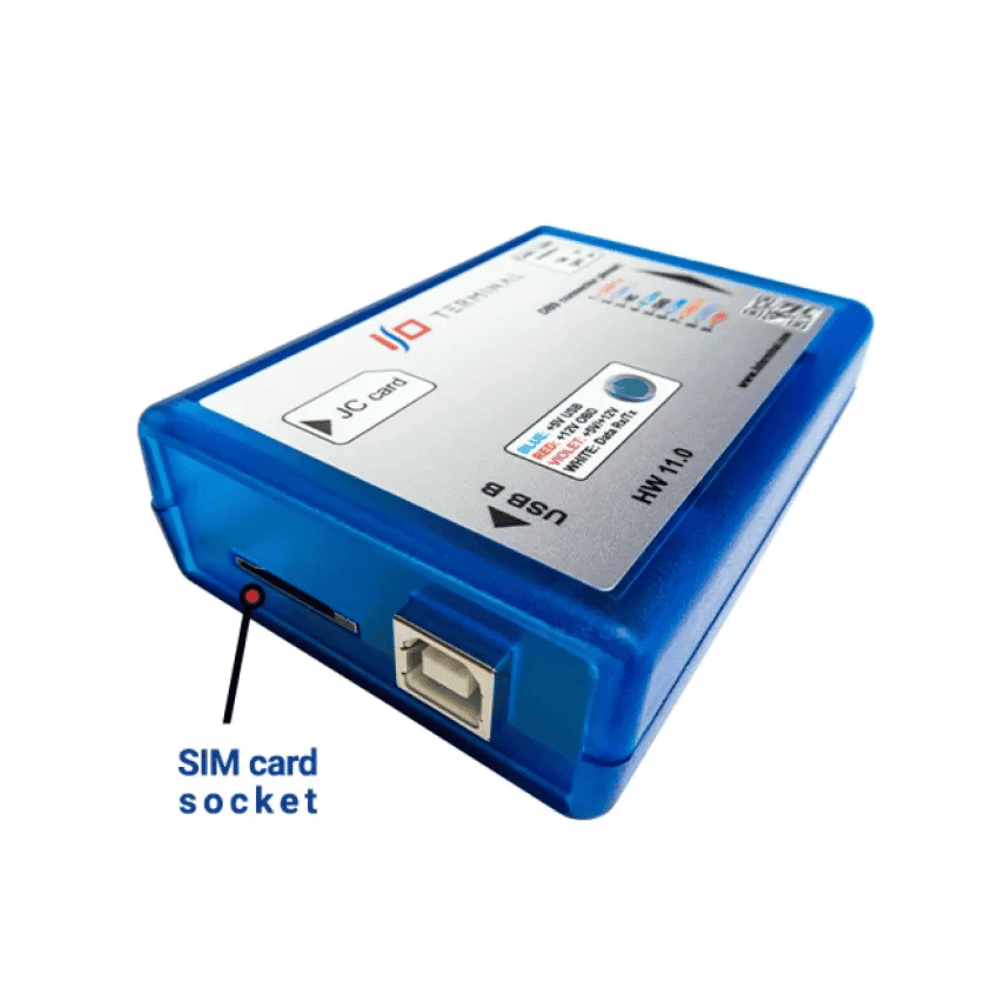

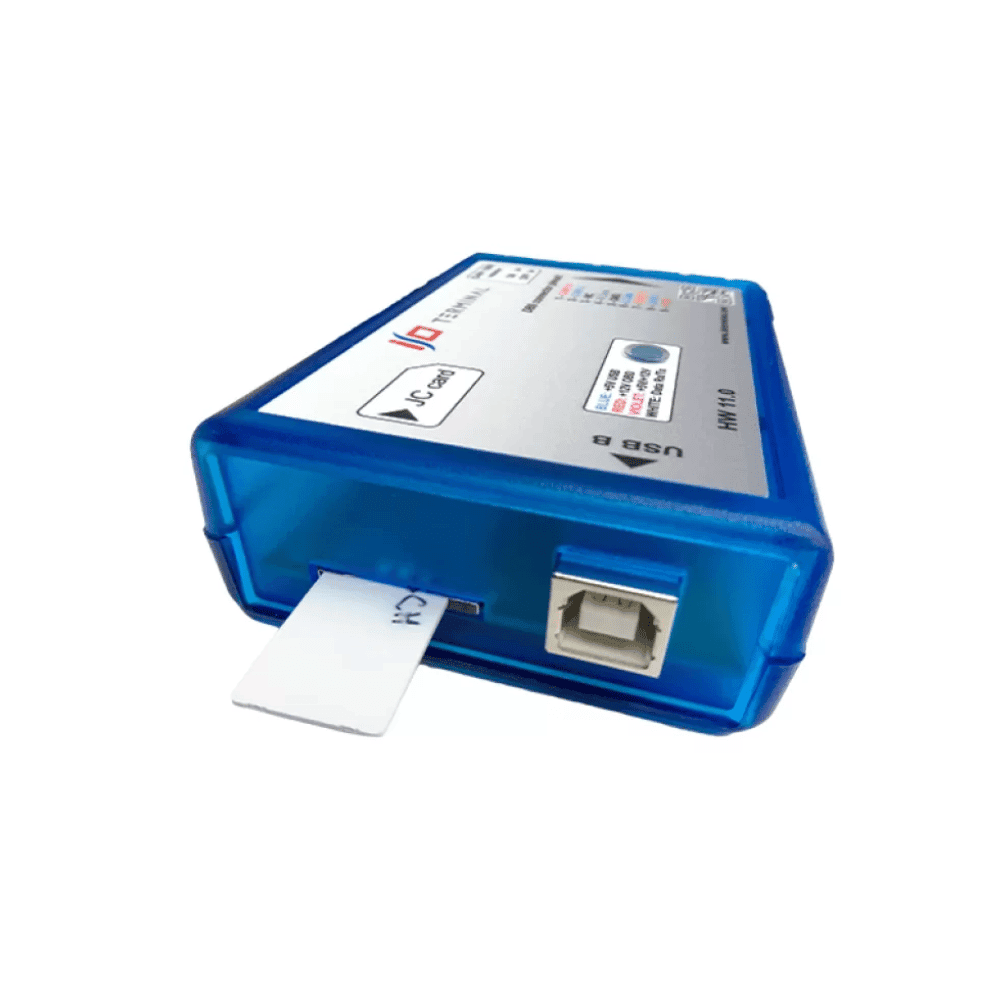

• Licenses are stored on special SIM-style cards that must be inserted into the adapter to access the corresponding modules.

• Multiple licenses can be stored on one card, though some may require individual cards depending on the module.
